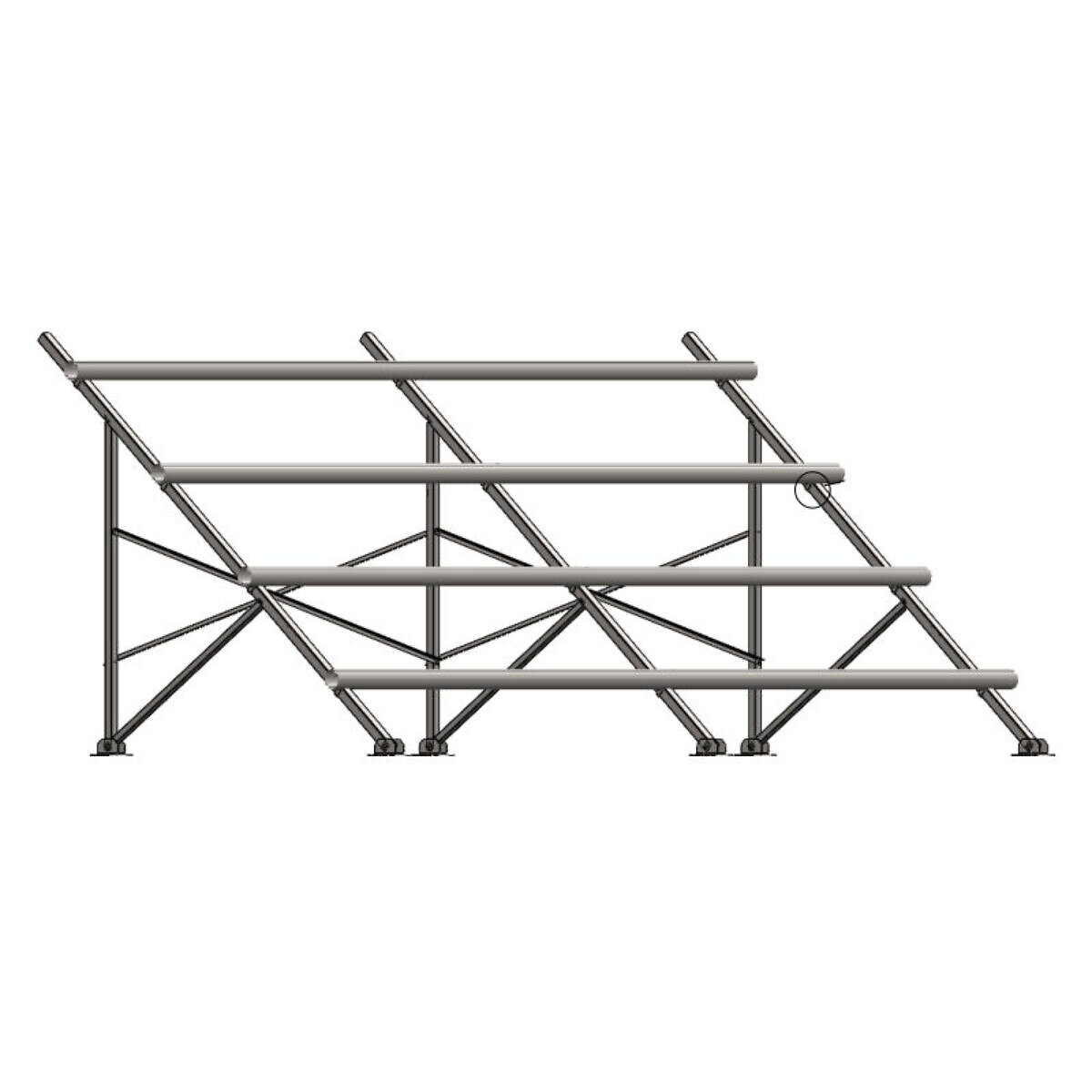

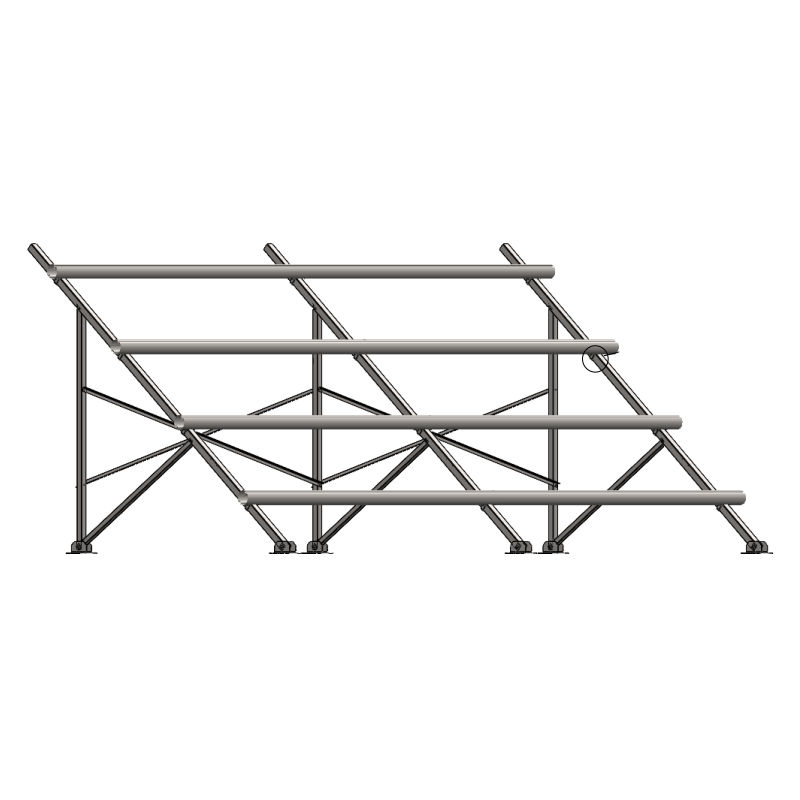

Kinetic KBFGMP-GA (portrait)

Kinetic’s ground mount is made to last! With a hot-dip galvanized trame, aluminum rails, and stainless-steel hardware. These ground mounts put the solar panels at a fixed 40-degree tilt-angle (great for year-around production for grid-tie systems in southern Canada!). These ground mounts come in increments of 2 panels, and mounts those panels in portrait orientation (short side down). This ground mount works for 60-cell (120 split-cells), 66-cell (132 split-cells), 72-cell (144 split-cells), and 78-cell (156 split-cells) modules, of up to 2300 mm x 1060 mm per framed module. The open structure also makes this ground mount work well for bi-facial modules.

This ground mount is designed for high-wind areas, and supports a snow load up to 2.5 kPa (Ground Snow Load) / 1.04 kPa (ULS), and wind load up to 1.0 kPa (hourly base wind pressure).

A landscape version of this ground mount is available as well.

These ground mounts drop-ship directly from Kinetic Solar in Toronto via truck-freight. Shipping cost is not included in the price. So even for pickup from our Kemptville warehouse there will be a shipping fee. The foundation and foundation hardware is not included.

Features

• Economical!
• Easy to install
• Galvanized steel construction
• Works for 60- and 72-cell modules
• Handles high wind and snow loads!
• Available for any number of panels, in 2-panel increments
