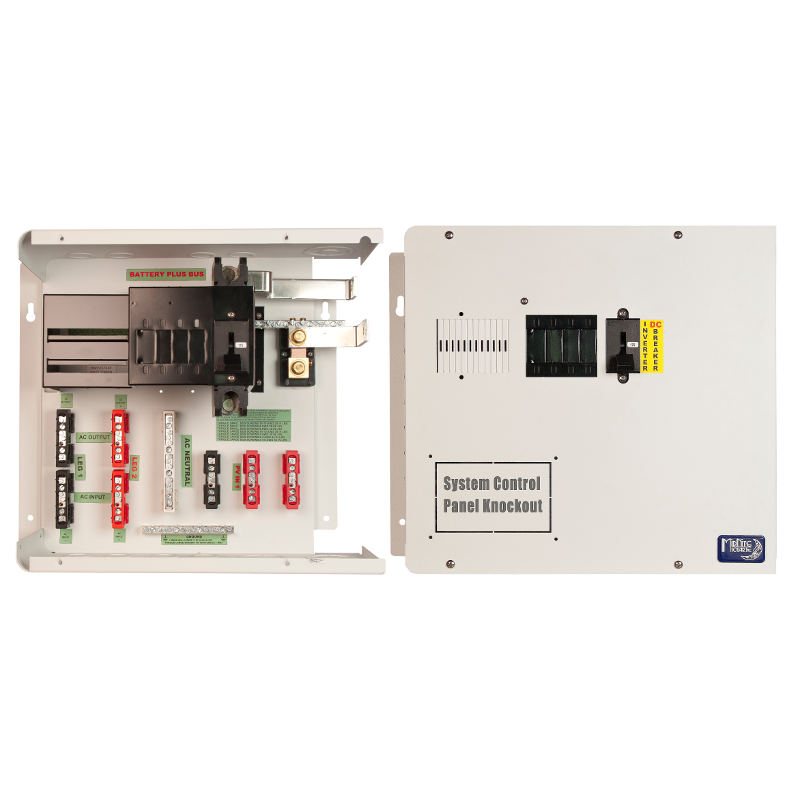

MidNite Solar MNE250SW

The MNE250SW is an E-Panel for a single Schneider Electric Conext SW inverter/charger. The SW inverter is mounted directly to the right of the E-Panel. It is available with the 175 Amp breaker (MNE175SW) for the SW2524 or with the 250 Amp breaker (MNE250SW) for the SW4024.

This E-panel is equipped with an inverter battery breaker, knockouts for up to 6 DIN rail mount AC or DC breakers (or the optional Bypass Kit) and 4 panel mount or DC-GFP80 breakers. Massive tin plated copper bus bars directly connect to the SW’s battery terminals, bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-, 500 Amp shunt, location to mount 2 charge controllers to the top. There are knockouts that correspond to the 1 inch knock outs in the charge controller.

Features

• Main breaker current rating – 250A
• Number of spaces – 10
• Environmental rating – type 1 (indoor)
• Maximum wire size – 4/0 AWG
• Maximum AC voltage – 240VAC
• Maximum DC voltage – 300VDC
• Warranty – 5 years
• Listed by ETL for US & Canada
