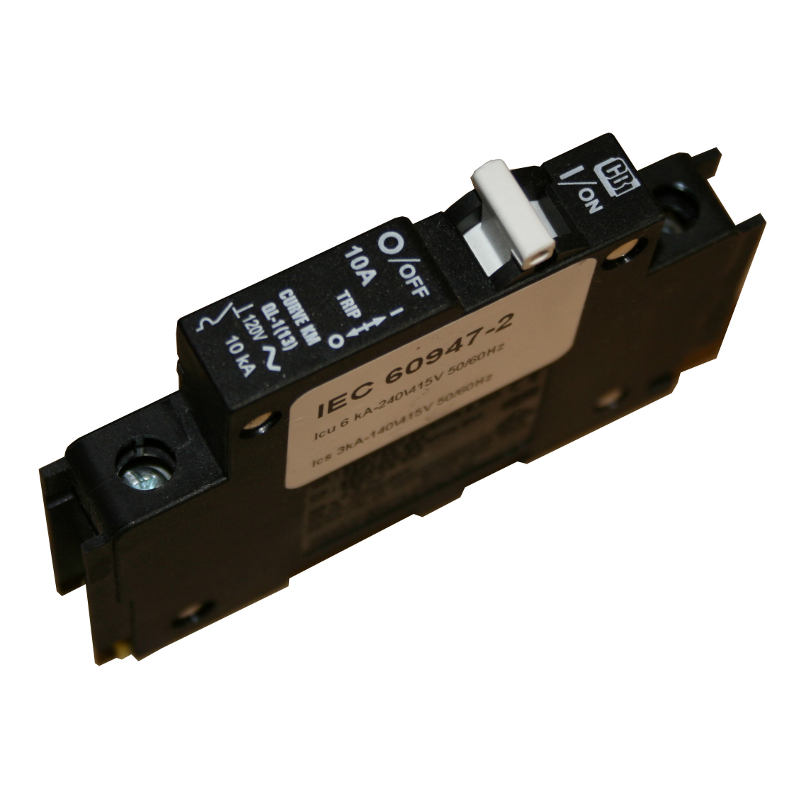

Midnite Solar MNEAC, 120 VAC, DIN rail mount breaker (13mm), 10 through 60 Amp, ETL listed in US and Canada
MidNite Solar MNEAC
$29.83
MidNite Solar AC breakers for DIN-rail mounting, 10 through 60 Amp single-pole, for 120 Volt AC. These breakers are 13mm wide. MidNite is the go-to choice when it comes to breakers, for AC and DC.
All MidNite circuit breakers are rated for 100% continuous duty. MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
Features
- Single pole
- Width 0.51 inch (13mm)
- AC Voltage Rating – 120 VAC
- Mounts on standard DIN-rail
- Environmental Rating – Type 1 (Indoor)
- 10,000 AIC (10 – 20 Amp), 3,000 AID (30 – 60 Amp)
- Breaker Torque Value: 20 inch-lbs (2.3 NM)
- Wire Size Range – 14 to 6 AWG
- ETL listed for US & Canada
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
- Our MidNite Solar manufacturer info page
- MidNite MNEAC manufacturer Web site
- MidNite MNEAC product spec sheet (pdf)
- MidNite MNEAC dimensional drawing (pdf)
Specifications
| Brand | |
|---|---|
| Mnfr. model | MNEAC10, MNEAC15, MNEAC20, MNEAC30, MNEAC40, MNEAC50, MNEAC60 |
| Max. Voltage | |
| Max. current |
