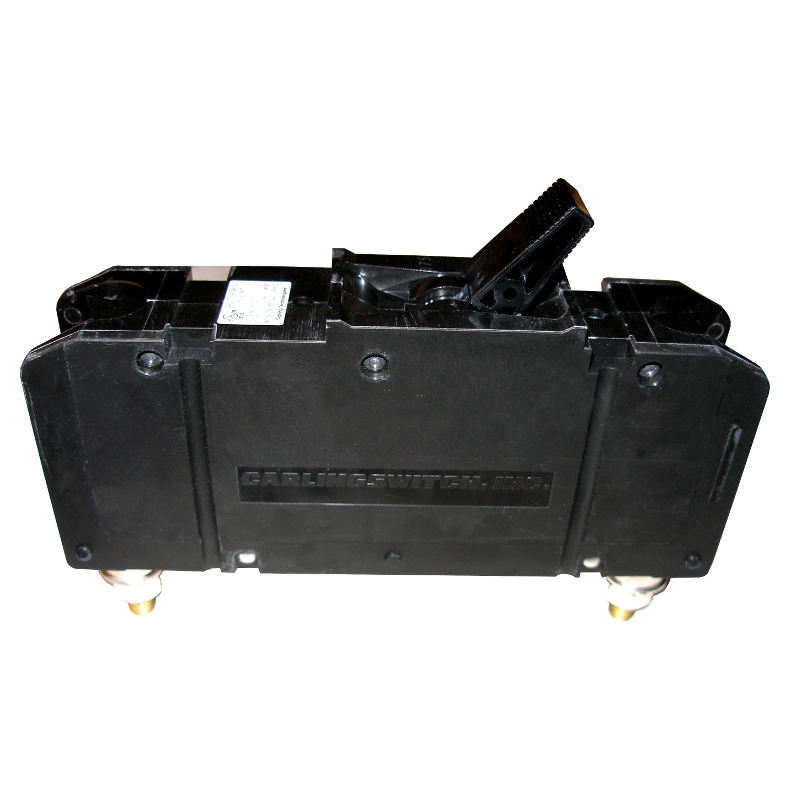

MidNite Solar MNEDC250

The DC-rated breakers from MidNite are the go-to choice for solar PV, wind, and battery systems. Anywhere DC breakers are required.

MidNite’s 125, 175, and 250 Amp breakers are ideal as overcurrent protection for inverters, and as a means to switch an entire off-grid system on and off. Their current ratings are such that they can switch even large inverters. MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

Breaker torque value: 15 ft-lbs (20.4 Nm)

Features

• 3/8″ studs
• 250 Amp DC rated
• Width of 1.5″ (39mm)
• Non-polarized breaker
• 125 Volt DC panel mount breaker
• 50,000 Amp interrupt rating at 125 VDC
• Environmental rating – Type 1 (indoor use)
• UL and CSA listed for the US and Canada
• 5 years warranty
