MidNite Solar MNPV16HV-DISCO 4X

Original price was: $2,547.43.Current price is: $1,998.00.

Clearance: Midnite Solar MNPV16HV-DISCO 4X, disconnecting 16-string combiner (can be split 8+8), NEMA-4X, 600 VDC rated

Find this useful? Share it with your friends!

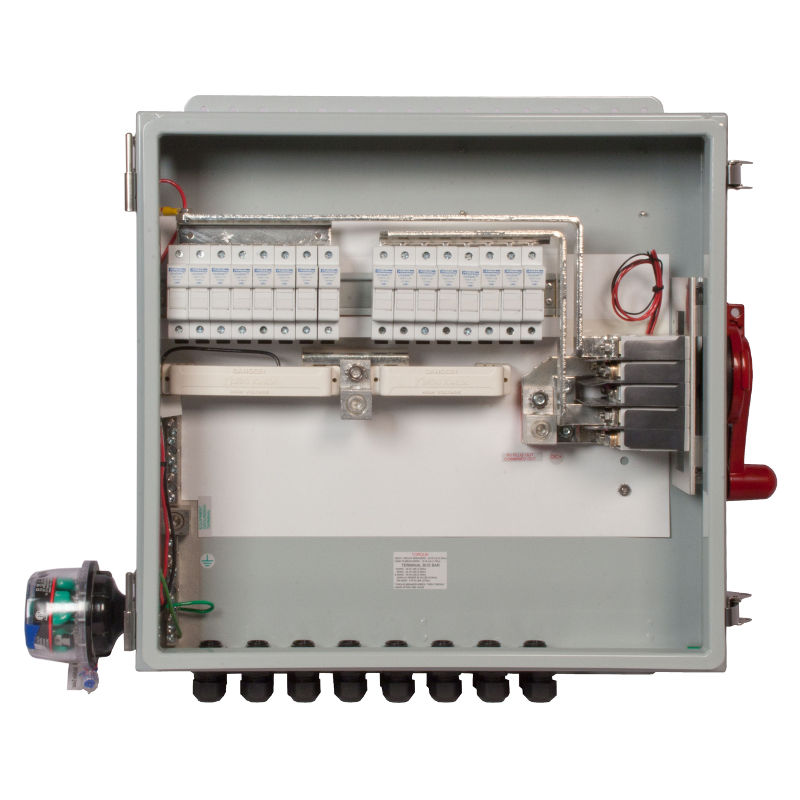

The MNPV16HV Disco 4X is a disconnecting combiner for up to 16 strings, a 230 Amp load break rated or 115 Amps load break rated for busbars and switches.  Rated for 600 Volt DC, in a water-tight NEMA-4X housing.

Features

  • Convertible configuration (field configurable)
  • 16 strings combined for up to 230 Amps single pole disconnect
  • 8 + 8 strings, separate PV+ and PV- for use with 2 inverters (2 pole 115A disconnect)
  • 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect)
  • Disconnect switch has built in shunt trip with positive feedback
  • Transparent deadfront & color coded busbar guards included
  • Birdhouse compatible
  • Optional PV connected power supply
  • Load break rated
  • Optional AC connected power supply for redundancy
  • Type 4X aluminum enclosure (no rust, won’t turn to dust) with conduit/strain relief holes
  • 90o C connections
  • Comes with fuseholders (MNTS) installed
  • Comes with 15A/600V fuses installed
  • Warranty – 5 years
  • UL-listed (no CSA-listing)

Hardware

  • One MNSPD-600 (Surge Protection Device)
  • Sixteen 1/2″ strain reliefs (MNSR-1000)
  • Twenty 1/2″ locknuts
  • Fourteen hole plugs with gaskets
  • Two 10-32 X 7/8″ screws
  • Two 10-32 X 3/6″ screws
  • Two 3/8 – 16 X 7/8″ bolts
  • Twelve 10-32 keps nuts
  • One terminal pin 18-22 AWG
  • One terminal pin 10-12 AWG
  • One white insulator
  • One blue wrench (MNWRENCH)
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!

Specifications

Weight 27 lbs
Dimensions 26 × 24 × 6 in
Brand

Mnfr. model

Max. no. strings

Max. current

Max. Voltage

Enclosure

Warranty
