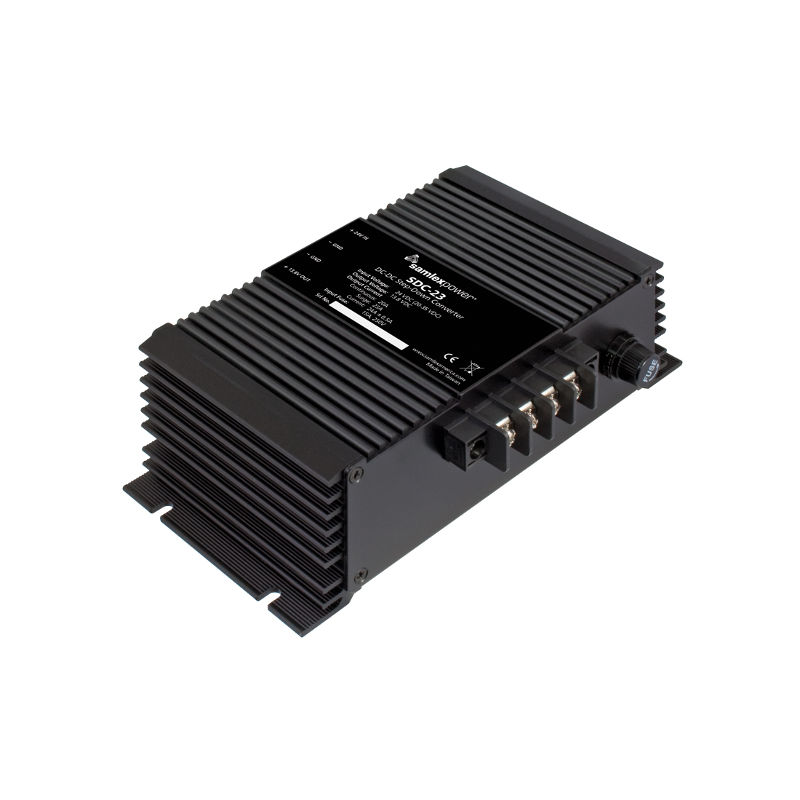

Samlex SDC-23

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include over-Voltage/short-circuit protection, temperature compensated current limit, output-side over-Voltage protection, input-side over-Voltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features

• High efficiency
• Advanced switch-mode design
• Converts 24 VDC to 12 VDC
• Compact and light weight
• Current limiting circuit
• Over-voltage protection
• Short circuit protection
• Reverse polarity protection
• Mount in almost any location
