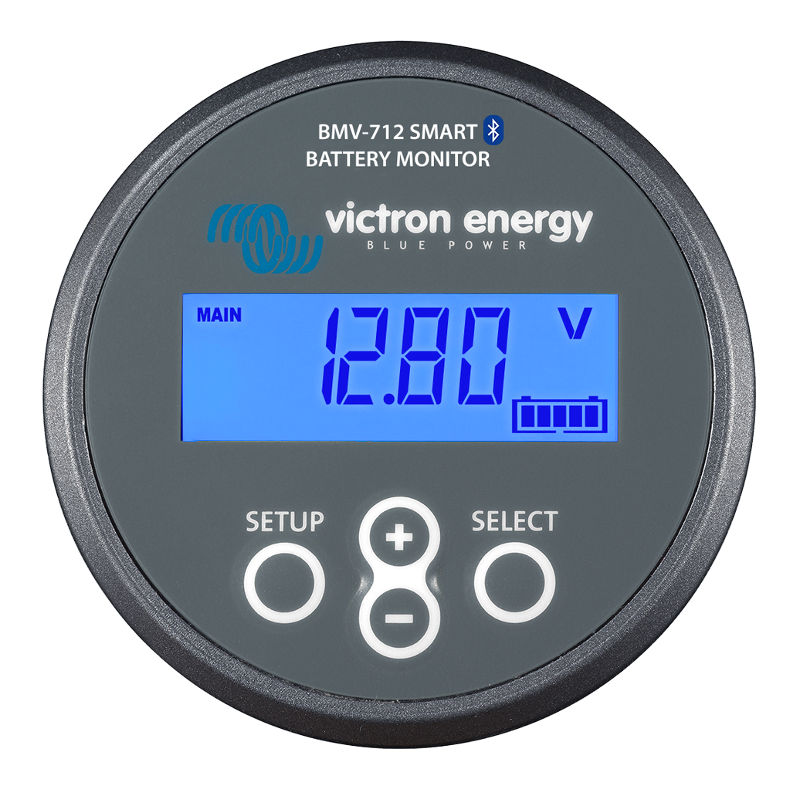

Victron BMV-712, smart battery monitor with shunt, 6.5 – 95 Volt, with Bluetooth communication, BAM030712X00
Victron BMV-712
$226.34

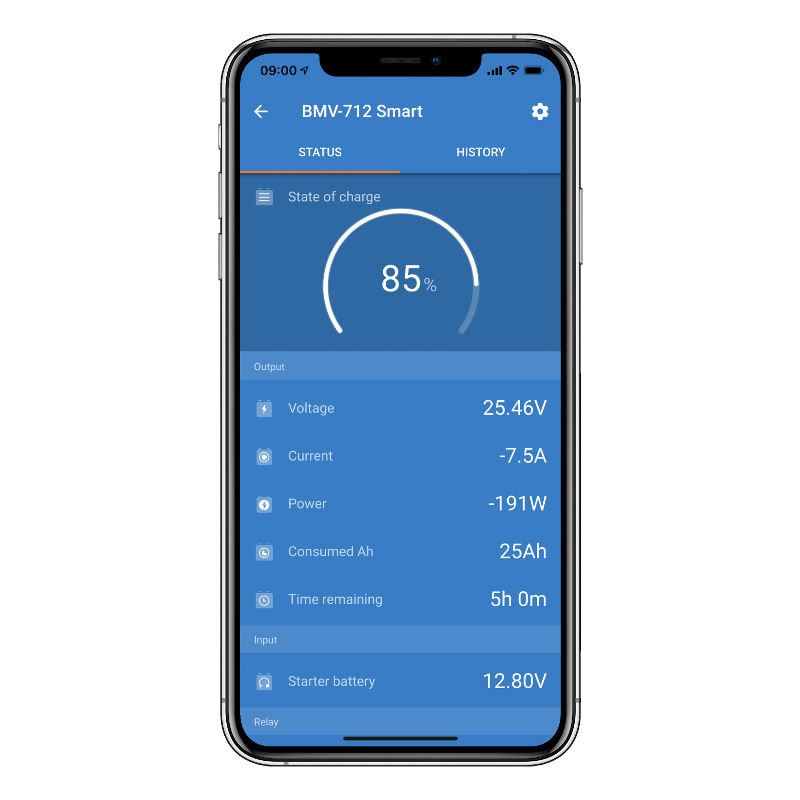

The Victron BMV-712 is one of the smartest battery monitors around! It is Bluetooth enabled, so your phone doubles as a display. The unit comes with a 500 Amp / 50 mV shunt, and can be connected to an optional battery temperature sensor (not included) to measure & display battery temperature as well.
The Victron BMV-712 works by counting Amp-hours flowing into and out of the battery through the shunt. This works for all battery types, and particularly well for lithium-ion batteries (because they are so efficient when charging). From those numbers the BMV-712 calculates the battery’s State-Of-Charge (SOC) as a percentage, 0% is an empty battery, 100% means full, and Ah’s left in the battery.
The unit can be wired together with other Victron products via the VE.Direct port, and comes with a 500A/50mV shunt.
Features
- Bluetooth enabled
- Available in gray and black
- Includes 500A/50mV shunt
- VE.Direct communications port
- Works for 6.5 – 70 Volt battery banks
- Only 1 mA current draw (0.7 Ah per month!)
- Victron BMV-712 manufacturer Web page
- Victron BMV-712 spec sheet (pdf)
- Victron BMV-712 quick installation guide (pdf)
- Victron BMV-712 manual (pdf)
- Victron warranty document (pdf)
Specifications
| Brand | |
|---|---|
| Mnfr. model | |
| Colour | |
| Warranty |
1 review for Victron BMV-712
Only logged in customers who have purchased this product may leave a review.
Robert –
Product was delivered in 2 days, even with the corona virus going on, thanks for the fast service.
Product was easy to install and works as advertise. Now I can view the battery usage without guessing. That is essential when camping without all the amenities.
