Victron Ekrano GX

The Victron Ekrano GX puts you in charge of your Victron system! It is the hub that communicates with all your Victron devices, for both local and remote control (through Victron’s VRM portal). The Ekrano combines both a Cerbo GX and a 7″ touch screen colour display into a single device.

The Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as a built-in 7-inch touchscreen display, it is the most powerful GX device to date and allows you to always have perfect control over your system from wherever you are
and to maximise its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD) or our VictronConnect app thanks to its built-in WiFi Access Point. The Ekrano GX is also the successor to the Color Control GX.

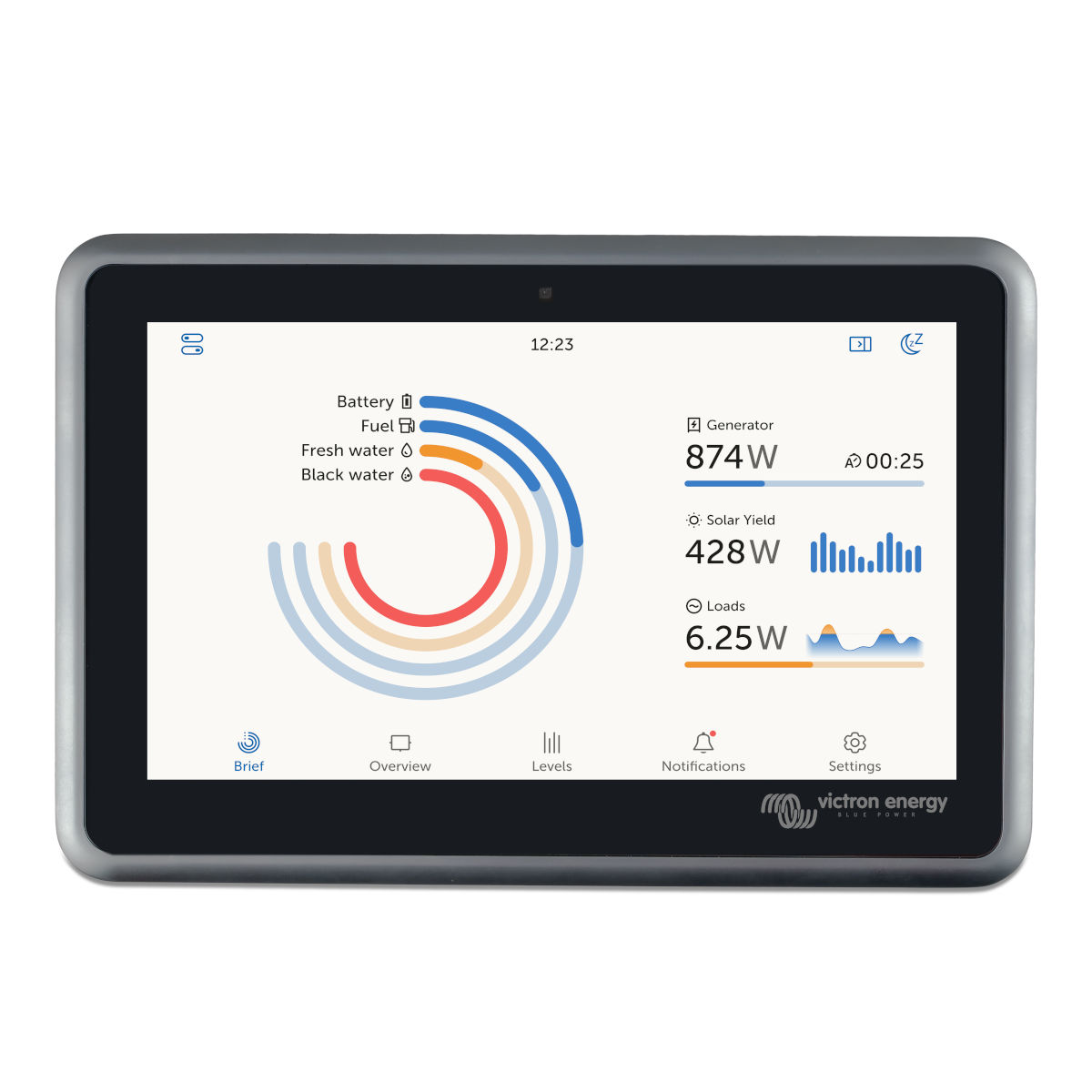

The seven-inch touchscreen display gives an instant overview of your system and allows you to adjust settings. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use. When mounted using the supplied steel bracket, the display is watertight from the outside. Remote Console on VRM Monitor, control and configure the Ekrano GX remotely, over the internet, just like if you were standing in front of the device, using the Remote Console. The same functionality is also available via local LAN network or via the built-in WiFi access point of the Ekrano GX.

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks and resolve complications remotely.

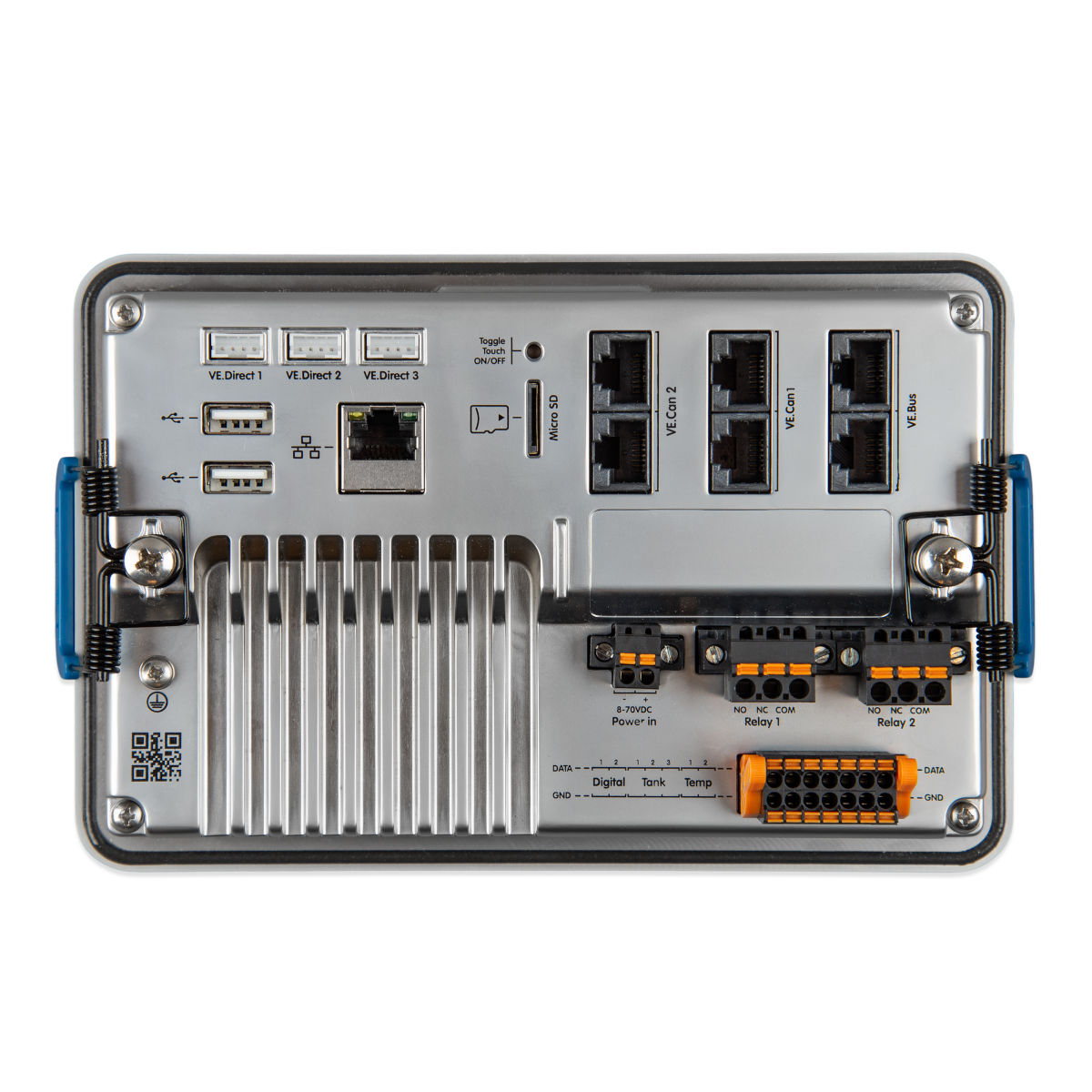

The Ekrano GX installs easily via a cut-out for flush panel mounting and includes both a steel bracket and springs for blind hole mounting. All ports are easily accessible from the back. The power and relay terminal blocks can be screwed in place and the IO terminal block has a quick release clamp for easy access. The Bluetooth feature allows for quick connection and configuration via our VictronConnect app.

Features

• 7″ Colour touch screen
• Works with just about any Victron product that has an interconnecting bus
• Works with a number of third-party inverters and products
• Build-in Bluetooth, USB, Ethernet, Wifi, VE.Can, VE.Bus, and VE.Direct
